B系列-2005sB-sB
發(fā)布日期：2023-11-13 瀏覽次數(shù)：1345

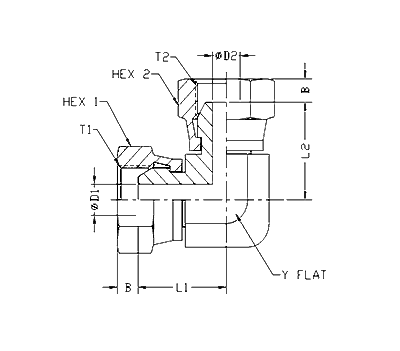

| ITEM | P/N | T1 | T2 | L1 | L2 | D1 | D2 | B | HEX 1 | HEX 2 | Y FLATS |
| 1 | 2005-02-02 | G1/8-28 | G1/8-28 | 16.0 | 16.0 | 3.5 | 3.5 | 5.4 | 14.0 | 14.0 | 11.1 |
| 2 | 2005-04-04 | G1/4-19 | G1/4-19 | 22.0 | 22.0 | 4.5 | 4.5 | 4.2 | 19.0 | 19.0 | 17 |
| 3 | 2005-06-06 | G3/8-19 | G3/8-19 | 24.0 | 24.0 | 7.0 | 7.0 | 6.0 | 22.0 | 22.0 | 22 |
| 4 | 2005-08-08 | G1/2-14 | G1/2-14 | 28.5 | 28.5 | 9.0 | 9.0 | 6.5 | 27.0 | 27.0 | 24 |
| 5 | 2005/12/12 | G3/4-14 | G3/4-14 | 33.0 | 33.0 | 14.5 | 14.5 | 8.7 | 32.0 | 32.0 | 27 |
| 6 | 2005-16-16 | G1-11 | G1-11 | 35.5 | 35.5 | 20.0 | 20.0 | 10.5 | 41.0 | 41.0 | 33.3 |
| 7 | 2005-20-20 | G1 1/4-11 | G1 1/4-11 | 46.0 | 46.0 | 26.0 | 26.0 | 10.1 | 50.0 | 50.0 | 41.3 |
| 8 | 2005-24-24 | G1 1/2-11 | G1 1/2-11 | 51.0 | 51.0 | 30.0 | 30.0 | 12.5 | 55.0 | 55.0 | 47.6 |
