J系列-2503

發(fā)布日期：2024-01-12 瀏覽次數(shù)：1356

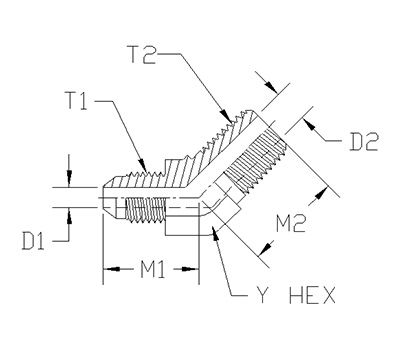

ITEM	P/N	HEX	T1	M1	D1	T2	M2	D2
1	2503-03-02-FG	0.438	3/8-24UNF	0.69	0.125	1/8-27NPTF	0.52	0.188
2	2503-04-02-FG	0.438	7/16-20UNF	0.72	0.172	1/8-27NPTF	0.64	0.188
3	2503-04-04-FG	0.562	7/16-20UNF	0.82	0.172	1/4-18NPTF	0.86	0.281
4	2503-04-06-FG	0.75	7/16-20UNF	0.85	0.172	3/8-18NPTF	0.95	0.406
5	2503-04-08-FG	0.875	7/16-20UNF	0.87	0.172	1/2-14NPTF	1.17	0.531
6	2503-05-02-FG	0.562	1/2-20UNF	0.77	0.234	1/8-27NPTF	0.64	0.188
7	2503-05-04-FG	0.562	1/2-20UNF	0.82	0.234	1/4-18NPTF	0.86	0.281
8	2503-06-02-FG	0.562	9/16-18UNF	0.83	0.297	1/8-27NPTF	0.67	0.188
9	2503-06-04-FG	0.562	9/16-18UNF	0.83	0.297	1/4-18NPTF	0.86	0.281
10	2503-06-06-FG	0.75	9/16-18UNF	0.87	0.297	3/8-18NPTF	0.95	0.406
11	2503-06-08-FG	0.875	9/16-18UNF	0.88	0.297	1/2-14NPTF	1.17	0.531
12	2503-06-12-FG	1.062	9/16-18UNF	0.93	0.297	3/4-14NPTF	1.2	0.719
13	2503-08-04-FG	0.75	3/4-16UNF	0.98	0.391	1/4-18NPTF	0.95	0.281
14	2503-08-06-FG	0.75	3/4-16UNF	0.98	0.391	3/8-18NPTF	0.95	0.406
15	2503-08-08-FG	0.875	3/4-16UNF	0.99	0.391	1/2-14NPTF	1.17	0.531
16	2503-08-12-FG	1.062	3/4-16UNF	1.04	0.391	3/4-14NPTF	1.2	0.719
17	2503-10-06-FG	0.875	7/8-14UN	1.11	0.484	3/8-18NPTF	0.98	0.406
18	2503-10-08-FG	0.875	7/8-14UN	1.11	0.484	1/2-14NPTF	1.17	0.531
19	2503-10-12-FG	1.062	7/8-14UN	1.16	0.484	3/4-14NPTF	1.2	0.719
20	2503-12-08-FG	1.062	1-1/16-12UN	1.28	0.609	1/2-14NPTF	1.2	0.531
21	2503-12-12-FG	1.062	1-1/16-12UN	1.28	0.609	3/4-14NPTF	1.2	0.719
22	2503-12-16-FG	1.312	1-1/16-12UN	1.42	0.609	1-11.5NPTF	1.48	0.938
23	2503-14-12-FG	1.312	1-3/16-12UN	1.45	0.719	3/4-14NPTF	1.3	0.719
24	2503-16-08-FG	1.312	1-5/16-12UN	1.47	0.844	1/2-14NPTF	1.29	0.531
25	2503-16-12-FG	1.312	1-5/16-12UN	1.47	0.844	3/4-14NPTF	1.29	0.719
26	2503-16-16-FG	1.312	1-5/16-12UN	1.47	0.844	1-11-1/2NPTF	1.48	0.938
27	2503-16-20-FG	1.625	1-5/16-12UN	1.54	0.844	1-1/4-11-1/2NPTF	1.67	1.25
28	2503-20-16-FG	1.625	1-5/8-12UN	1.59	1.078	1-11-1/2NPTF	1.64	0.938
29	2503-20-20-FG	1.625	1-5/8-12UN	1.59	1.078	1-1/4-11-1/2NPTF	1.67	1.25
30	2503-20-24-FG	1.875	1-5/8-12UN	1.65	1.078	1-1/2-11-1/2NPTF	1.77	1.5
31	2503-24-24-FG	1.875	1-7/8-12UN	1.78	1.312	1-1/2-11-1/2NPTF	1.77	1.5
32	2503-32-32-FG	2.5	2-1/2-12UN	2.22	1.781	2-11-1/2NPTF	2.11	1.938
