J系列-2705
發(fā)布日期：2024-01-12 瀏覽次數(shù)：1465

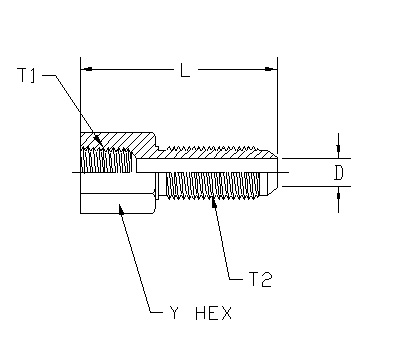

| ITEM | P/N | Y HEX | T1 | T2 | D | L |
| 1 | 2705-02-04-FG | 0.688 | 1/8-27 NPTF | 7/16-20 UNF | 0.172 | 1.88 |
| 2 | 2705-04-04-FG | 0.750 | 1/4-18 NPTF | 7/16-20 UNF | 0.172 | 2.08 |
| 3 | 2705-04-06-FG | 0.750 | 1/4-18 NPTF | 9/16-18 UNF | 0.297 | 2.16 |
| 4 | 2705-06-06-FG | 0.875 | 3/8-18 NPTF | 9/16-18 UNF | 0.297 | 2.22 |
| 5 | 2705-06-08-FG | 0.875 | 3/8-18 NPTF | 3/4-16 UNF | 0.391 | 2.38 |
| 6 | 2705-08-08-FG | 1.125 | 1/2-14 NPTF | 3/4-16 UNF | 0.391 | 2.61 |
| 7 | 2705-12-12-FG | 1.375 | 3/4-14 NPTF | 1-1/16-12 UN | 0.609 | 2.99 |
