O系列-6410
發(fā)布日期：2024-01-16 瀏覽次數(shù)：1801

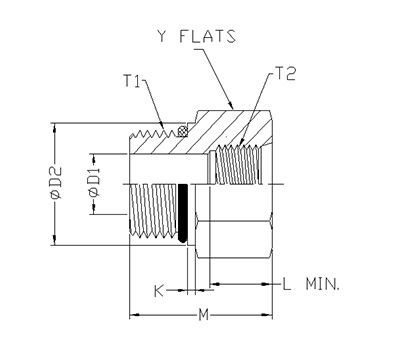

| ITEM | P/N | Y FLATS | T1 | T2 | D1 | D2 | K | L MIN. | M |
| 1 | 6410-04-06-O | 20.64 | 7/16-20 UNF | 9/16-18UNF | 4.37 | 16 | 2.3 | 12.7 | 29.46 |
| 2 | 6410-06-04-O | 17.46 | 9/16-18UNF | 7/16-20 UNF | 7.54 | - | - | 11.5 | 27.43 |
| 3 | 6410-08-04-O | 22.23 | 3/4-16 UNF | 7/16-20UNF | 9.93 | - | - | 11.5 | 20.32 |
| 4 | 6410-12-08-O | 31.75 | 1 1/16-12 UN | 3/4-16UNF | 15.47 | - | - | 14.3 | 25.4 |
| 5 | 6410-16-12-O | 38.1 | 1 5/16-12 UN | 1 1/16-12UN | 21.44 | - | - | 19.05 | 44.45 |
| 6 | 6410-24-16-O | 53.98 | 1 7/8-12 UN | 1 5/16-12UN | 31.24 | - | - | 19.05 | 25.4 |
