BF_FB-OR4110-ED
發(fā)布日期：2024-01-16 瀏覽次數(shù)：1664

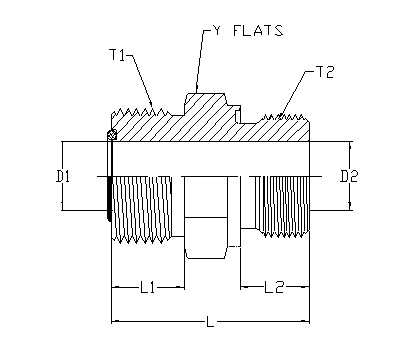

| ITEM | P/N | Y HEX | T1 | T2 | L1 | L2 | L | D1 | D2 |
| 1 | OR4110-04-04-ED-FG | 19 | 9/16-18UNF | G1/4-19 | 9.8 | 12 | 30.6 | 4.4 | 6 |
| 2 | OR4110-04-06-ED-FG | 22 | 9/16-18UNF | G3/8-19 | 9.8 | 12 | 31.8 | 4.4 | 7.9 |
| 3 | OR4110-06-04-ED-FG | 19 | 11/16-16UNF | G1/4-19 | 11.2 | 12 | 32 | 6 | 6 |
| 4 | OR4110-12-12-ED-FG | 32 | 1 3/16-12UN | G3/4-14 | 17 | 16 | 46 | 15.47 | 15.47 |
