BJ_JB-37-8070
發(fā)布日期：2024-01-16 瀏覽次數(shù)：1731

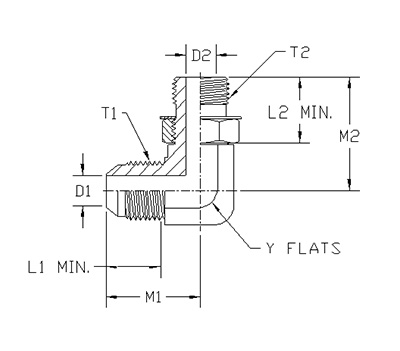

| ITEM | P/N | Y FLATS | T1 | T2 | M1 | M2 | L1 MIN. | L2 MIN. | D1 | D2 |
| 1 | 37-8070-04-10 | 11.13 | 7/16-20UNF | M10X1 | 22.60 | 25.00 | 13.59 | 16.00 | 4.40 | 4.50 |
| 2 | 37-8070-04-12 | 14.30 | 7/16-20UNF | M12X1.5 | 22.60 | 30.00 | 13.59 | 20.00 | 4.40 | 6.00 |
| 3 | 37-8070-05-M14 | 14.27 | 1/2-20UNF | M14X1.5 | 26.92 | 31.50 | 13.59 | 19.99 | 5.94 | 5.94 |
| 4 | 37-8070-06-M14 | 14.27 | 9/16-18UNF | M14X1.5 | 26.92 | 32.00 | 13.74 | 19.99 | 7.54 | 7.54 |
| 5 | 37-8070-06-M18 | 19.05 | 9/16-18UNF | M18X1.5 | 27.00 | 37.01 | 13.74 | 21.51 | 7.54 | 9.93 |
| 6 | 37-8070-08-M18 | 19.05 | 3/4-16UNF | M18X1.5 | 31.75 | 36.83 | 16.31 | 21.51 | 9.93 | 9.93 |
| 7 | 37-8070-10-M18 | 22.23 | 7/8-14UNF | M18X1.5 | 36.83 | 40.69 | 18.87 | 21.51 | 12.29 | 9.93 |
| 8 | 37-8070-10-22 | 22.00 | 7/8-14UNF | M22X1.5 | 36.80 | 41.70 | 18.87 | 22.50 | 12.29 | 14.00 |
| 9 | 37-8070-10-26 | 27.00 | 7/8-14UNF | M26X1.5 | 39.12 | 49.30 | 18.87 | 29.00 | 12.30 | 15.00 |
| 10 | 37-8070-12-22 | 27.00 | 1 1/16-12 UN | M22X1.5 | 42.20 | 44.40 | 21.56 | 22.50 | 15.47 | 14.00 |
