H系列-4604
發(fā)布日期：2024-01-09 瀏覽次數(shù)：1755

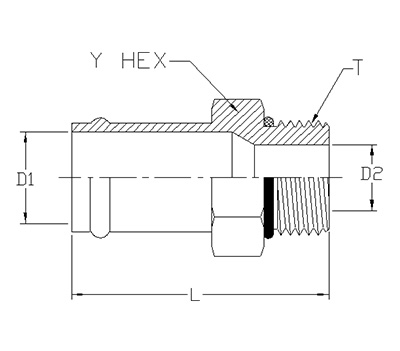

| ITEM | P/N | Y HEX | D1 | T | D2 | L |
| 1 | 4604-04-04-O | 14.3 | 4.37 | 7/16-20 UNF | 4.37 | 52.0 |
| 2 | 4604-04-06-O | 17.46 | 4.37 | 9/16-18 UNF | 4.37 | 53.0 |
| 3 | 4604-06-06-O | 17.46 | 7.54 | 9/16-18 UNF | 7.54 | 53.0 |
| 4 | 4604-08-08-O | 22.23 | 9.93 | 3/4-16 UNF | 9.93 | 55.5 |
| 5 | 4604-16-12-O | 31.75 | 21.4 | 1-1/16-12 UN | 15.5 | 60.5 |
