E系列-C2503
發(fā)布日期：2024-01-09 瀏覽次數(shù)：1172

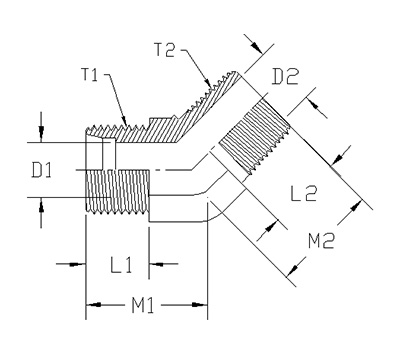

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
| 1 | C2503-05-02-FG | 0.562 | 1/2-20 UNF | 0.75 | 0.234 | 1/8-27 NPTF | 0.64 | 0.188 |
| 2 | C2503-06-06-FG | 0.75 | 9/16-18 UNF | 0.87 | 0.281 | 3/8-18 NPTF | 0.95 | 0.406 |
| 3 | C2503-08-06-FG | 0.75 | 3/4-16 UNF | 0.98 | 0.422 | 3/8-18 NPTF | 0.95 | 0.406 |
| 4 | C2503-16-16-FG | 1.312 | 1-5/16-12 UN | 1.36 | 0.875 | 1-11-1/2 NPTF | 1.48 | 0.938 |
